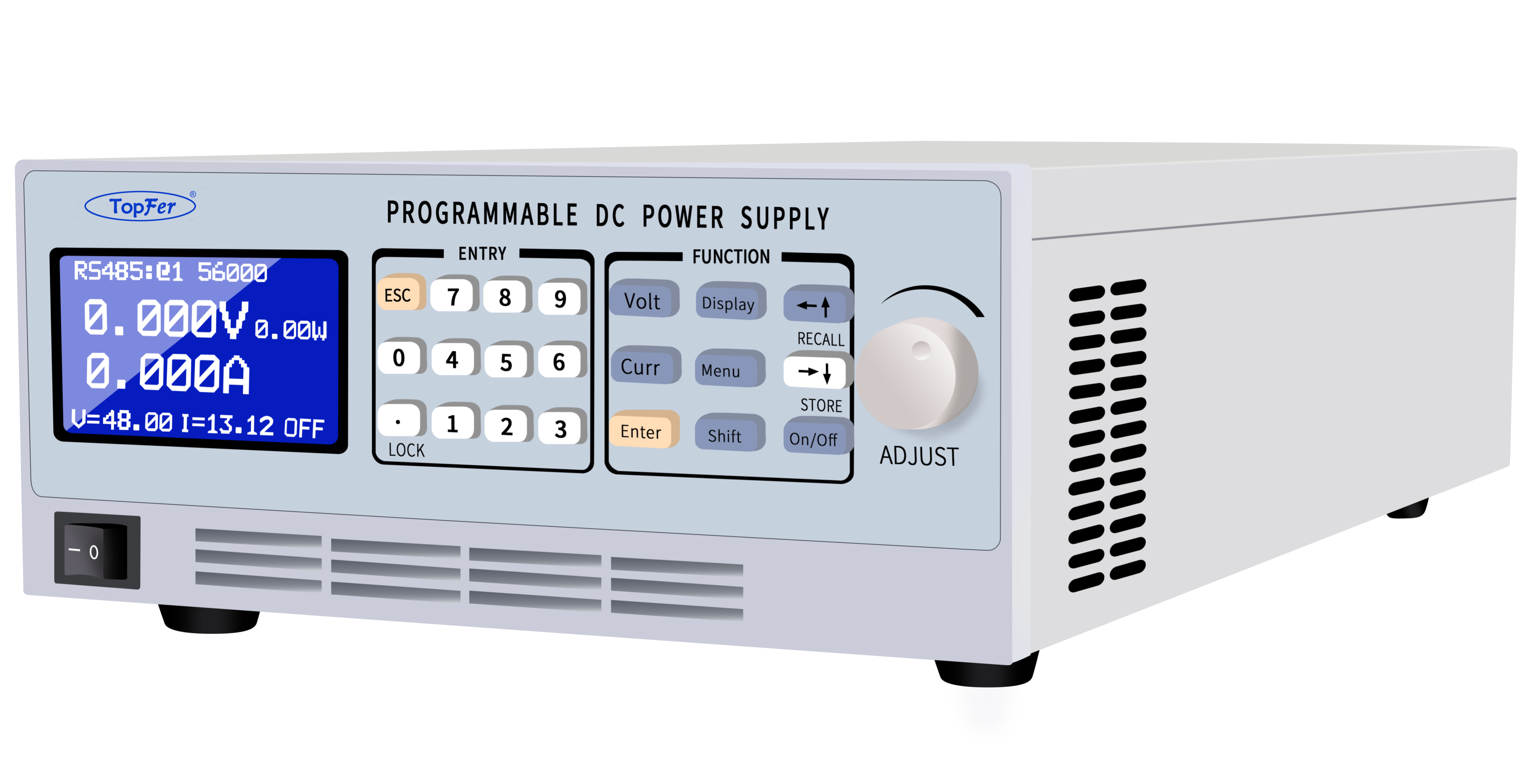

ODM Programmable Power DC Supply High Power 300W-600W

Brand Name : Topfer

Model Number : TPD-3080PL

Place of Origin : China

MOQ : one set

Price : to be discussed

Payment Terms : T/T

Supply Ability : 10 sets /15days

Delivery Time : 1 to 2 weeks

Packaging Details : wooden crate

Input voltage : 190-265VAC

Input frequency : 47-63Hz

Power factor : >0.98

Contact Now

Programmable DC Power Supply, Programmable DC Regulated Power Supply, High-Power Programmable Power Source

Features:

  • Wide output range: 0-120V; 0-20A
  • Power output range: 300W-600W
  • Programmable control steps to set output voltage/current
  • 18 bit ADC/16 bit DAC, with a voltage resolution of 1mV and a current resolution of 1mA
  • Operation modes: CV, CC switchable
  • Remote compensation for load line drop
  • Protection against overvoltage, overcurrent, overpower, overtemperature, short circuit, and reverse polarity connection on compensation lines
  • Function key operation, with an encoded knob for setting
  • Communication interfaces: RS232/485
  • Communication protocols: Standard SCPI protocol, Modbus, JC custom
  • 2.8-inch LCD display shows complete operational status

Application Fields:

  • Electronics field
  • Medical field
  • Communication field
  • Scientific research field
  • Household appliances field
  • LED field
  • Aerospace field
  • Automated testing field

Specifications table:

Model

TPD-3080PL

 TPD-30120PL TPD-6080PL TPD-60120PL
Input voltage 190-265VAC 190-265VAC 190-265VAC 190-265VAC
Input frequency 47-63Hz 47-63Hz 47-63Hz 47-63Hz
Power factor >0.98 >0.98 >0.98 >0.98
Input power 345VA(MAX) 345VA(MAX) 680VA(MAX) 680VA(MAX)
Output voltage range 0-80V 0-120V 0-80V 0-120V
Output current range 0-10A

0-5A

0-20A

 0-10A
Output power range 0-300W 0-300W 0-600W 0-600W
Voltage load adjustment 30mV 30mV 30mV 30mV
Current load adjustment 10mA 25mA 10mA 2mA
Voltage display resolution 1mV 10mV 1mV 10mV
Current display resolution 1mV 1mV 1mV 1mV
Voltage setting accuracy FS0.05％±RD0.05% FS0.05％±RD0.05% FS0.05％±RD0.05% FS0.05％±RD0.05%
Current setting accuracy FS0.1％±RD0.1% FS0.1％±RD0.1% FS0.1％±RD0.1% FS0.1％±RD0.1%
Voltage readback accuracy FS0.05％±RD0.05% FS0.05％±RD0.05% FS0.05％±RD0.05% FS0.05％±RD0.05%
Current readback accuracy FS0.1％±RD0.1% FS0.1％±RD0.1% FS0.1％±RD0.1% FS0.1％±RD0.1%
Voltage ripple*1 80mVp-p 120mVp-p 80mVp-p 120mVp-p
5mVrms 12mVrms 5mVrms 12mVrms
Operating mode Constant voltage (CV)/constant current (CC) Constant voltage (CV)/constant current (CC) Constant voltage (CV)/constant current (CC) Constant voltage (CV)/constant current (CC)
Remote compensation 5V MAX 5V MAX 5V MAX 5V MAX
Efficiency 88% 88% 88% 88%
Input fuse T5A T5A T5A T5A
Net weight 3.5KG 3.5KG 3.5KG 3.5KG
Dimensions (H×W×D) 88×215×380 mm 88×215×380 mm 88×215×380 mm 88×215×380 mm
Protection functions Over-temperature protection (OTP), over-power protection (OPP), over-current protection (OCP), over-voltage protection (OVP), compensation sensor failure (SFP).
Communication method Standard configuration: RS232/485
Cooling method Fan cooling, intelligent fan temperature control
Operating environment Temperature 0~45°C, relative humidity 10%~90% (no condensation)

Note *1: CV mode - rated output voltage (Vp-p @ 20MHz, Vrms @ 1.25MHz).
